フル オートのラミネーション機械
Created with Pixso.

Fully Automatic Lamination Machine with 15m/min Laminating Speed and Automatic Board Feeding for Gypsum False Ceiling Cutting

Fully Automatic Lamination Machine with 15m/min Laminating Speed and Automatic Board Feeding for Gypsum False Ceiling Cutting

ブランド名: Greenson
モデル番号: オートマティックPVCファニヤの石膏天井機械
Moq: 1
価格: $20000-200000
支払条件: LC、T/T
供給能力: 6セット/年
詳細情報
起源の場所:
hebei
証明:
CE ISO
製品名:
中国、労働力と材料資源を削減する石膏ボード天井切断機
キーワード:
石膏仮天井切断機
ボード給餌モード:
オートマティック (押すタイプ、吸い込みタイプ) オプション
ラミネート速度:
15m/min
ボードを解放するモード:
集中輸送を積み重ねる
スタック モード:
10層 ((4つのパッケージ/層)
フィルム素材:
PVCフィルム、アルミ箔、装飾紙など
板材:
石膏ボード、PVC発泡ボード、セクショナルボードなど
基板サイズ:
595*595*7-30mm 603*603*7-30mm 600*600*7-30mm 1200*600*7-30mm 1195*595*7-30mm
電圧:
380V
供給の能力:
6セット/年
ハイライト:

15m/min Laminating Speed Gypsum False Ceiling Cutting Machine

,

Automatic Board Feeding Fully Automatic Lamination Machine

,

10 Layers Stacking Mode Gypsum Ceiling Tile Production Line

製品説明
Automatic PVC Veneer Plaster Ceiling Machine
This advanced PVC coated gypsum board ceiling production line significantly reduces labor and material resources while delivering high-quality false ceiling panels for interior decoration applications.
Technical Specifications
Product Name Automatic PVC Veneer Plaster Ceiling Machine PVC Coated Gypsum Board Ceiling Production Line
Board Feeding Mode Automatic (push type, suction type) optional
Laminating Speed 15m/min
Board Releasing Mode Stacking concentrated transportation
Stacking Mode 10 layers (4 packages/layer)
Film Material PVC film, aluminum foils, decorative paper, etc.
Board Sheet Material Gypsum board, PVC foam board, sectional board, etc.
Production Line Features
  • Multiple automatic levels available to suit different production needs
  • Siemens PLC control system for reliable operation
  • High annual production capacity of 2-6 million square meters
  • Compatible with gypsum board, PVC film, aluminum foil, and glue
  • Maximum effective laminating width: 1300mm
  • Handles sheet thickness from 5mm to 30mm
  • Frequency conversion synchronous speed regulation
  • Certified with ISO9001 and CE standards
Production Process
This plasterboard laminating machine processes paper-faced gypsum boards (6mm to 8mm thickness) by applying special glue on both sides, then laminating with PVC film and PET foil. The finished boards are cut to standard sizes (60×60mm) for use as false ceilings in interior decoration applications.
Automation Features
  • Simultaneous PVC film and PET foil lamination

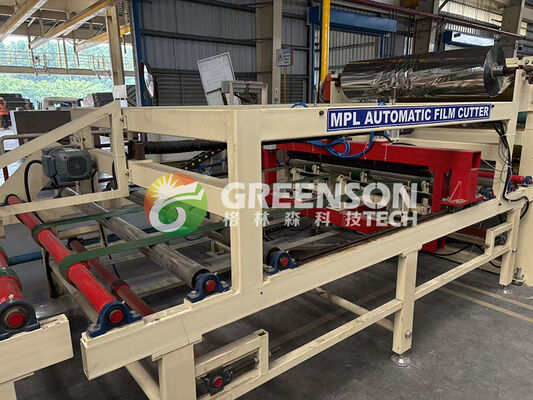

  • Automatic film and foil cutting system
  • Automatic side taping for finished edges
  • Integrated shrinking and packing system
  • PLC automatic control for precision operation
Automatic PVC Gypsum Ceiling Tiles Cutting Machine
This specialized equipment produces various plates through PLC-controlled automation. The system includes automatic push plate, routing, cutting, longitudinal cutting, and automatic palletizing functions, utilizing chain and sprocket transmission.
With advanced process technology, compact and reasonable structure, reliable operation, and elegant design, the finished plates are ideal for indoor decoration. The products offer moisture-proof, lightweight, soundproof properties with diverse specifications and beautiful decorative effects. Quick and easy construction makes this equipment essential for gypsum board factories, cabinet door board factories, and decorative material companies.
Applicable to various materials including MDF, fire board, and gypsum board partitions, this system has gained widespread market and customer approval.
