600x600mm Gypsum Ceiling Tile Production Line with PVC Lamination

600x600mm Gypsum Ceiling Tile Production Line with PVC Lamination

モデル番号: Lvjoe-FM
Moq: 1 line
価格: US $20000-200000
支払条件: T/T,L/C
供給能力: 10 line per year
詳細情報
Place of Origin:
Shijiazhuang, Hebei province
証明:
ISO CE
Product Name:
600*600mm Plaster Ceiling Gypsum Ceiling Tile Making Machine Production Line
Keyword:
decorative gypsum board ceiling tile making machine gypsum rhinogypsum ceiling board making machine
Sheet thickness:
5-9mm
Laminating speed:
15m/min
capacity:
2-6 million sqm
Original:
Hebei province
Packaging Details:
PE film packing
Supply Ability:
10 line per year
ハイライト:

600x600mm gypsum ceiling tile machine

,

PVC lamination ceiling tile line

,

automatic gypsum tile production line

製品説明
600×600mm Plaster Ceiling Gypsum Ceiling Tile Making Machine Production Line
Product Name 600×600mm Plaster Ceiling Gypsum Ceiling Tile Making Machine Production Line
Sheet Thickness 5-9mm
Laminating Speed 15m/min
Annual Capacity 2-6 million sqm
Origin Hebei Province, China
Product Overview

This advanced production line manufactures decorative gypsum ceiling tiles (600×600mm) used for modern interior false ceilings. The machine laminates PVC film and PET foil onto paper-faced gypsum boards, creating high-quality decorative ceiling tiles with excellent profit potential.

Production Process
1220×2440mm gypsum board feeding → glue spreading → PVC film and PET foil laminating → pressing → first cutting → second cutting → side taping → stacking → shrinking and packing → finished ceiling tile
Key Features
  • Simultaneous PVC film and PET foil lamination
  • Automatic film/foil cutting system
  • Integrated side taping mechanism
  • Automatic shrinking and packing
  • PLC automatic control system
  • Available in 2M, 4M, or 6M sqm annual capacity configurations
Applications

This production line creates premium decorative ceiling tiles used in commercial and residential interior decoration. The finished products offer excellent aesthetics and functionality as modern false ceiling solutions.

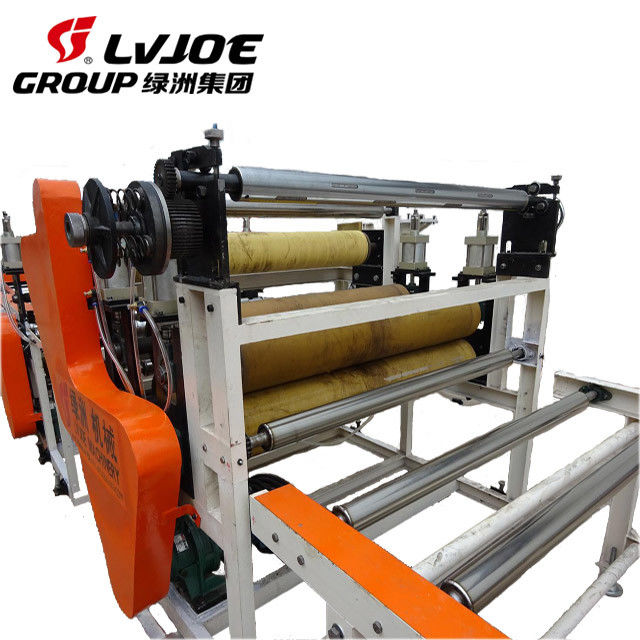

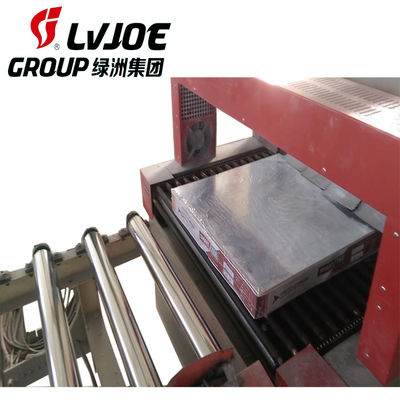

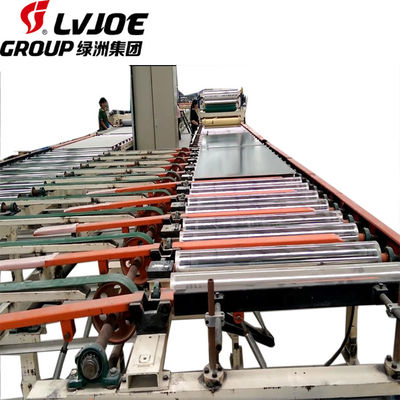

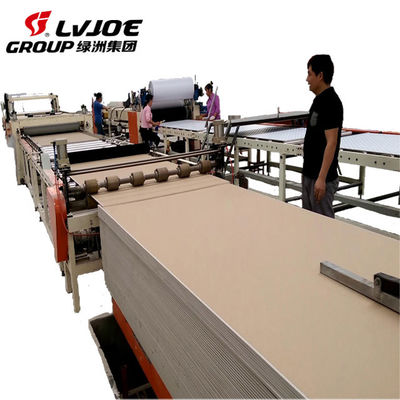

600×600mm Plaster Ceiling Gypsum Ceiling Tile Making Machine Production Line in operation
