| ブランド名: | Greenson |
| Moq: | 1 |
| 価格: | $700000-$800000 |
| 支払条件: | LC、T/T |

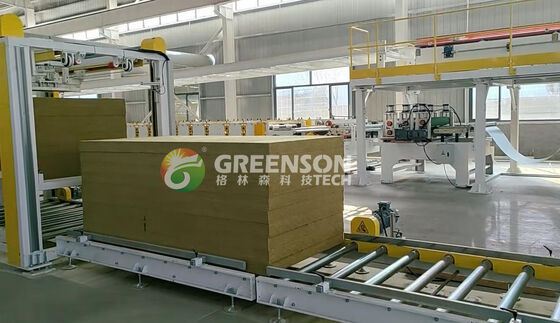

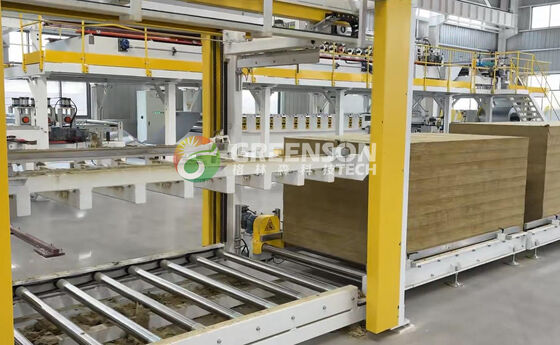

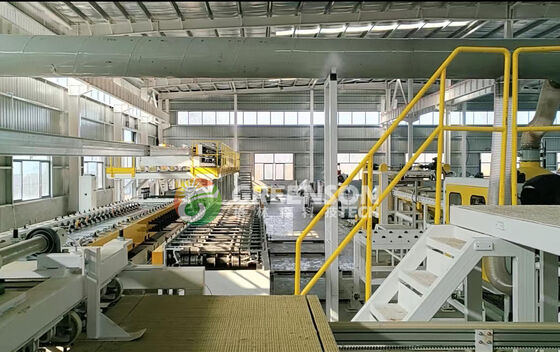

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.
| Material Type | Color steel sheet; Galvanized sheet; Aluminum sheet |
|---|---|
| Material Thickness | 0.3-0.8 mm |
| Material Width | ≤1250 Mpa |
| Suitable Panel Length | 2000-18000 mm |
| Suitable Panel Width | 500-1200 mm |
| Suitable Panel Thickness | 30-250 mm (excluding corrugation height) |
| Production Speed | 3-15 m/min (Adjustable) |
| Valid Length of Double Belt Conveyor | 12000-42000 mm |
| Work Pressure on Pouring Foam | 150-200 Bar |
| Total Power | 660 kW / 300 kW |
| Total Dimensions | 130000 * 15000 * 6000 mm (Length * Width * Height) |
