| ブランド名: | Greenson |
| Moq: | 1 |
| 価格: | $700000-$800000 |
| 支払条件: | LC、T/T |

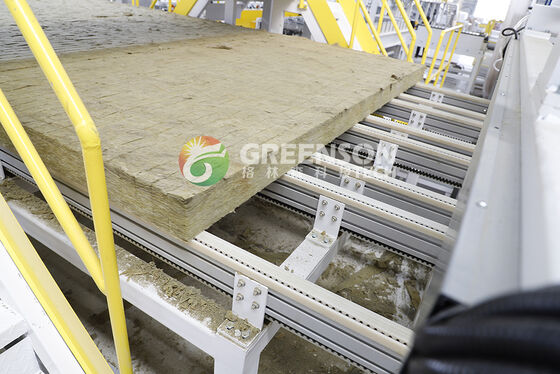

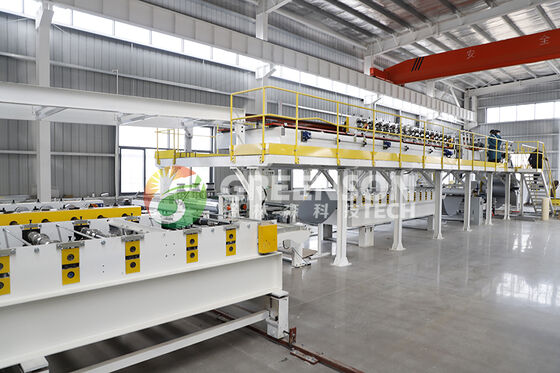

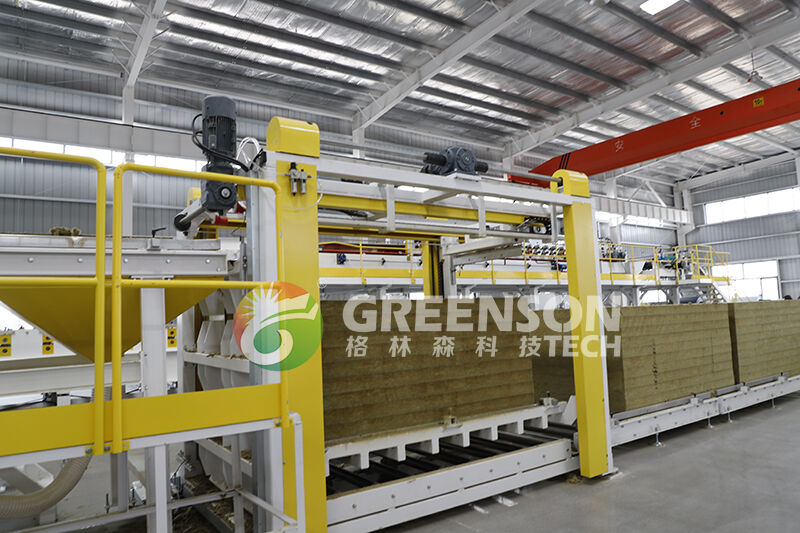

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

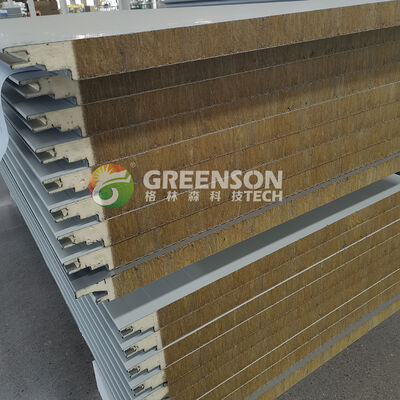

The stone wool sandwich panel is widely used for steel structure workshops, roofs of simple and movable houses, wall bodies, suspended ceilings of air purification rooms, and separation. Rigid polyurethane foam has been recognized as the best building thermal insulation material internationally, offering low heat conductivity and high bending resistance capacity.
This rigid polyurethane foam doesn't absorb water or decay, and it cannot be damaged by insects and mice. It has good fire resistance and a wide scope of heat resistance. With the physical properties of polyurethane PU and our unique prescription, we combine high-temperature polyurethane with coating steel panels to achieve compact forming.
| Material Type | Color steel sheet; Galvanized sheet; Aluminum sheet |
|---|---|
| Material Thickness | 0.3-0.8 mm |
| Material Width | ≤1250 Mpa |
| Suitable Panel Length | 2000-18000 mm |
| Suitable Panel Width | 500-1200 mm |
| Suitable Panel Thickness | 30-250 mm (excluding corrugation height) |
| Production Speed | 3-15 m/min (Adjustable) |
| Valid Length of Double Belt Conveyor | 12000-42000 mm |
| Work Pressure on Pouring Foam | 150-200 Bar |
| Total Power | 660 kW / 300 kW |
| Total Dimensions | 130000 × 15000 × 6000 mm (Length × Width × Height) |
