Small Business Plate Hole Punching Machine Punch Hole Plate Machine Perforating Machine

Small Business Plate Hole Punching Machine Punch Hole Plate Machine Perforating Machine

ブランド名: Greens
モデル番号: LV
Moq: 1
価格: US $20000-80000
供給能力: 年間30組
詳細情報
起源の場所:
中国
証明:
ISO CE
製品名:
小規模企業 プレートホールパンシングマシン プレートホールパンシングマシン パルフォーリングマシン
キーワード:
石膏板の穴を打たれる機械 完全自動孔付き石膏板の機械
パンチされた材料:
ジプス板,HDF,鋼,プラスチックシート
タイプ:
80t,160t,200t
パネルの種類:
石膏板,木板,金属板など
穴のタイプ:
方形,丸い,または要求に応じてカスタマイズ
デザイン:
丸い穴,四角い穴,不規則な穴
総重量:
7000KG
パッケージの詳細:
標準梱包
供給の能力:
年間30組
ハイライト:

small business plate hole punch

,

sheet perforation machine with warranty

,

punch hole plate machine durable

製品説明

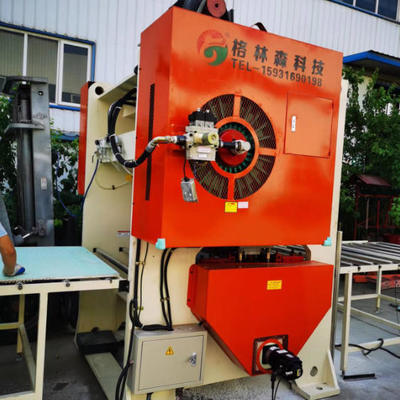

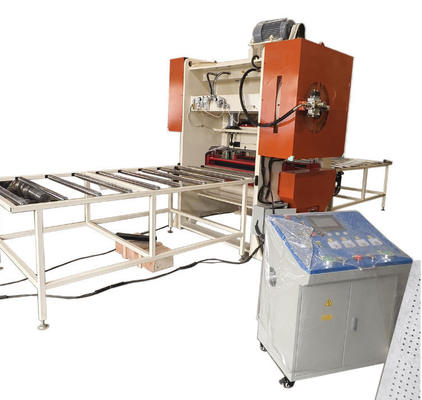

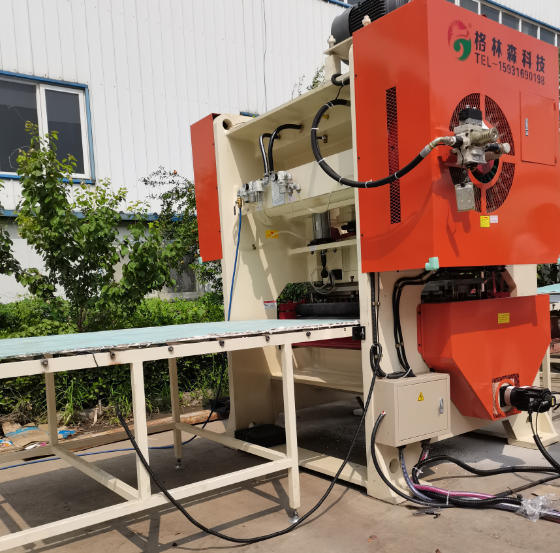

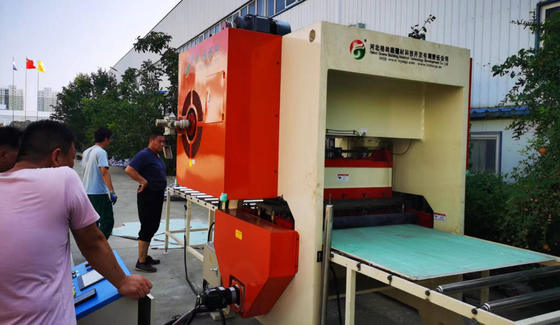

Small Business Plate Hole Punching Machine
Product Overview

Professional perforating machine designed for punching precise holes in various panel materials including gypsum board, HDF, steel, and plastic sheets. Available in multiple tonnage options (80t, 160t, 200t) to suit different production requirements.

Key Specifications
Attribute Value
Material Compatibility Gypsum board, HDF, steel, plastic sheet
Machine Types 80t, 160t, 200t
Panel Types Gypsum board, wood panel, metal sheet
Hole Types Square, round, or customized shapes
Total Weight 7000kg
Technical Specifications
  • Punching pressure: 160 KG
  • Punching stroke: 30mm
  • Maximum gypsum board punching thickness: 20mm
  • Punching speed: 1 board/min (50 times/min for 1220mm×2400mm boards)
Performance Features
  • Produces smooth, clean holes with no burrs
  • Vertical punching action ensures precision
  • Suitable for gypsum board and calcium silicate board
  • Multiple hole shape options: square, round, triangle, hexagonal, plum blossom, fish scale, and custom designs
Manufacturer Information

Hebei Greens Building Material Technology Development Co., Ltd (a branch company of Lvjoe Group) is a leading manufacturer specializing in building material machinery. Our product range includes gypsum board lamination machines, mineral fiber board production lines, fiber cement board production lines, MgO board production lines, and gypsum cornice production lines.
